Installation in places
with great number of gathered people
Installation on
Public Transportation

Innovative, Certified Air Purifier

STERIAL Premium Air Purifier is an innovative and certified air purification device, reducing almost totally the microbial and viral air load. Moreover, the device is quite effective in relation to the eradication of the new SARS-CoV-2 virus that causes the COVID – 19 disease. Using UV-C radiation, photocatalysis (STERIAL III), filters impregnated with organic polymer (HEPA 14 filter), and 7-level filtration, it eliminates within the first 15 minutes of its operation up to 70,62% of the SARS-CoV-2 virus, while in 60 minutes up to 99,40%.

Active Purification

The viruses and microbes are not just filtered but are actively destructed, ensuring the air purification in a completely safe way for the gathered people.

Effectiveness in relation to the elimination of the COVID – 19 disease

STERIAL Air Purifier eliminates up to 70,62% of the SARS-CoV-2 virus that causes the disease within the first 15 minutes of its operation.

Patented Technology

The device incorporates the patented technology of “Triple Barrier”.

Device Usage

Suitable for use indoors where groups of people are gathered, especially in places with intense mobility such as public transportation, offices, workplaces, etc.

High Performance

The maximum air flow of the device is 450 m3/h

Quick & Easy Installation

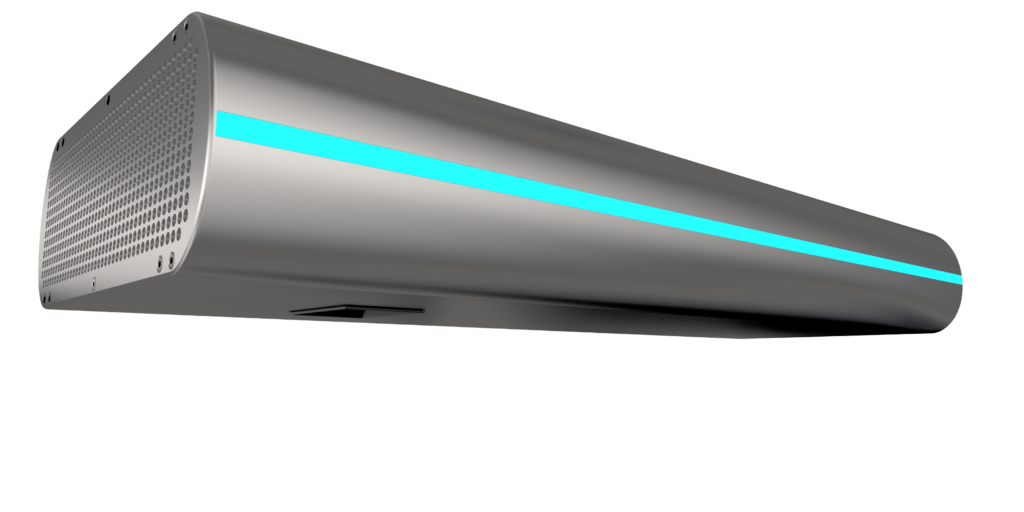

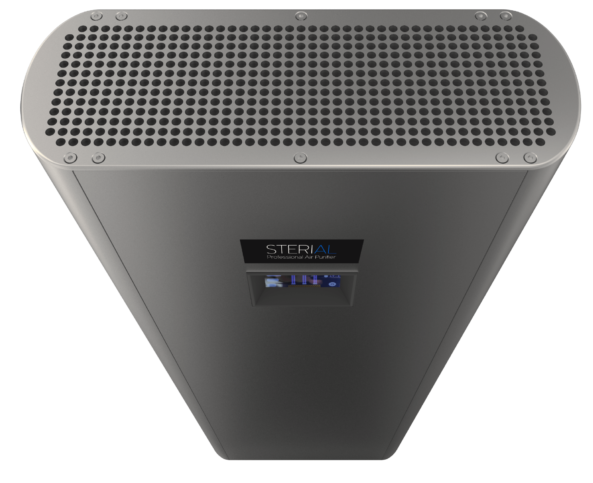

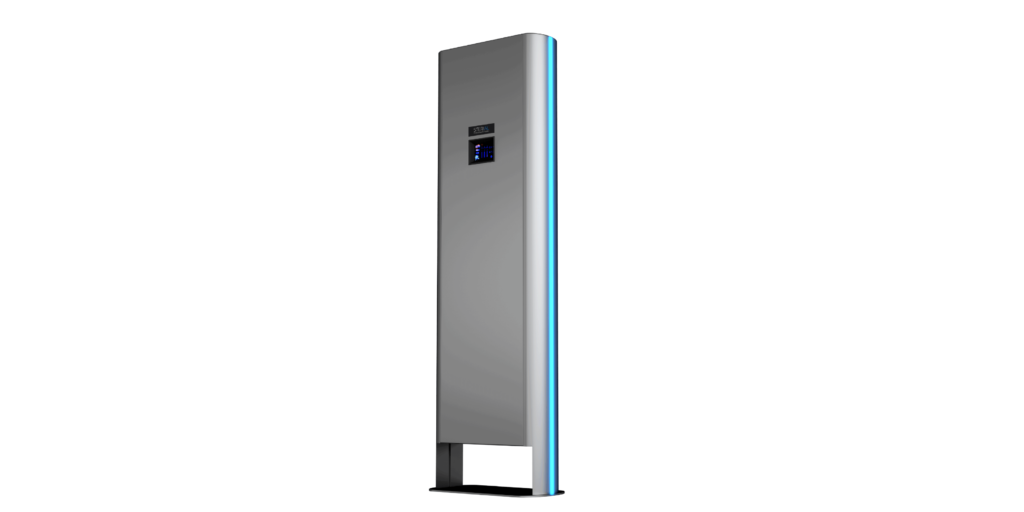

STERIAL Premium Air Purifier can be installed either horizontally on the ceiling (STERIAL I) or vertically in the desired place (STERIAL II). Once the device is plugged into a power source, it starts operating without the need for any additional adjustments.

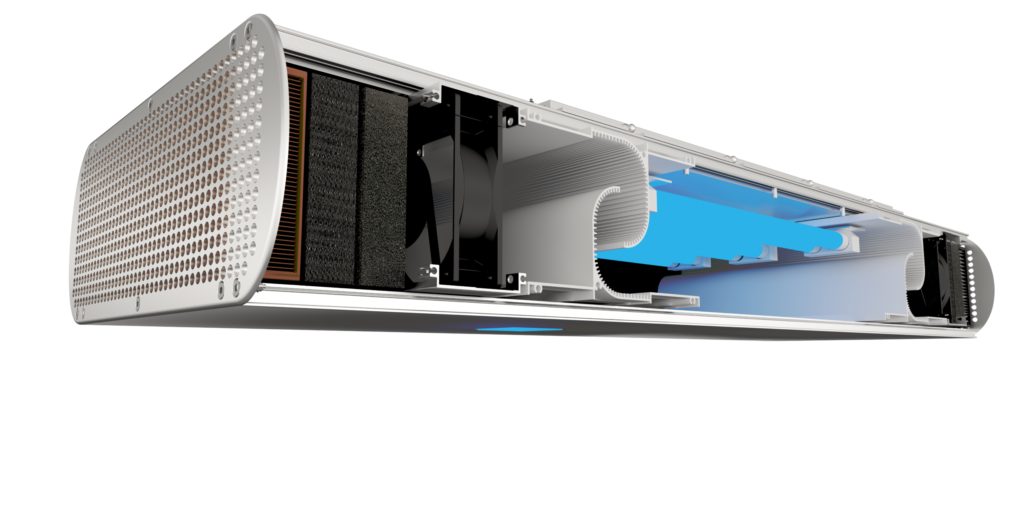

How It Works

Incorporates the patented technology of “Triple Barrier”.

1

 Air flow intake

2
An array of three (3) different active filters,
which are impregnated with a patented organic
polymer. These filters are not just filtering the microbes,
but they eliminate and destroy viruses.
3

Electric power switch, with safety fuse.

4
Power deactivation switch, in case of the
disassembly of the device, securing the protection from UV-C radiation.
4
Power deactivation switch, in case of the
disassembly of the device, securing the protection from UV-C radiation.
5

UV-C high power lamps (6 Χ 40 W)

6

 Reflective surface for multiplication of UV-C radiation power

7
Radiation chamber with double aluminium walls, for
absolute protection against the UV-C radiation escape.
8

Touch screen – Device control panel and basic air data report

9
Compressor fans, with two (2) and four (4) speed
modes (STERIAL I & II respectively) of high
efficiency (STERIAL I 40db – 62db at 450m3/h, and STERIAL
II 35db – 62db at 450m3/h).
10

Second array of three (3) different filters, with HEPA 14 stage.

11

 Fresh air outlet (without trace elements and microbial microorganisms)

1

Active filters, impregnated with a patented organic polymer

In the inlet of the device, the first array of filters is placed, which is consisted of three different filters: a) PPU20 class G3, b) Carbon Filter, and c) ALU mesh Filter. At this point, the first level of destruction is achieved, while these filters, which are impregnated with a patented organic polymer, functions as prefilters for the air inside the device.

2

Powerful UV-C radiation technology

After the first level of purification, the air is heading towards the interior of the device, where through the UV-C radiation it keeps being purified.

3

A second array of active filters impregnated with patented organic polymer

Before the air reaches the exit of the device, it enters the second array of three different filters: a) ALU mesh Filter, b) Carbon Filter, and c) ΗΕΡΑ 14 Filter. These filters retain and eliminate all the remaining residues from the previous processes.

Special coating of the internal surfaces

High-performance filters

Safety technology

Fast airflow

Low noise technology (LOW-N)

Low power consumption technology (LOW-P)

Special coating of the internal surfaces

Powerful performance filters

Safety technology

Fast air flow

Low noise technology (LOW-N)

Low power consumption technology (LOW-P)

Screen Functions

Screen Color 3.5’’ TFT

Fan power adjustment

Deactivation in low voltage (Only in STERIAL I)

Warning for burned-out lamp

Power mode (High power for 5 mins)

Warning for clogged filters

Automatic shutdown in case of the disassembly of the device

Warning for fan malfunction

LED brightness adjustment

Fan power adjustment

Deactivation in low voltage (Only in STERIAL I - Bus model)

wow2

Warning for burned-out lamp

power

Power mode (High power για 5 min)

Warning for clogged filters

Automatic shutdown in case of the disassembly of the device

Warning for fan malfunction

LED brightness adjustment

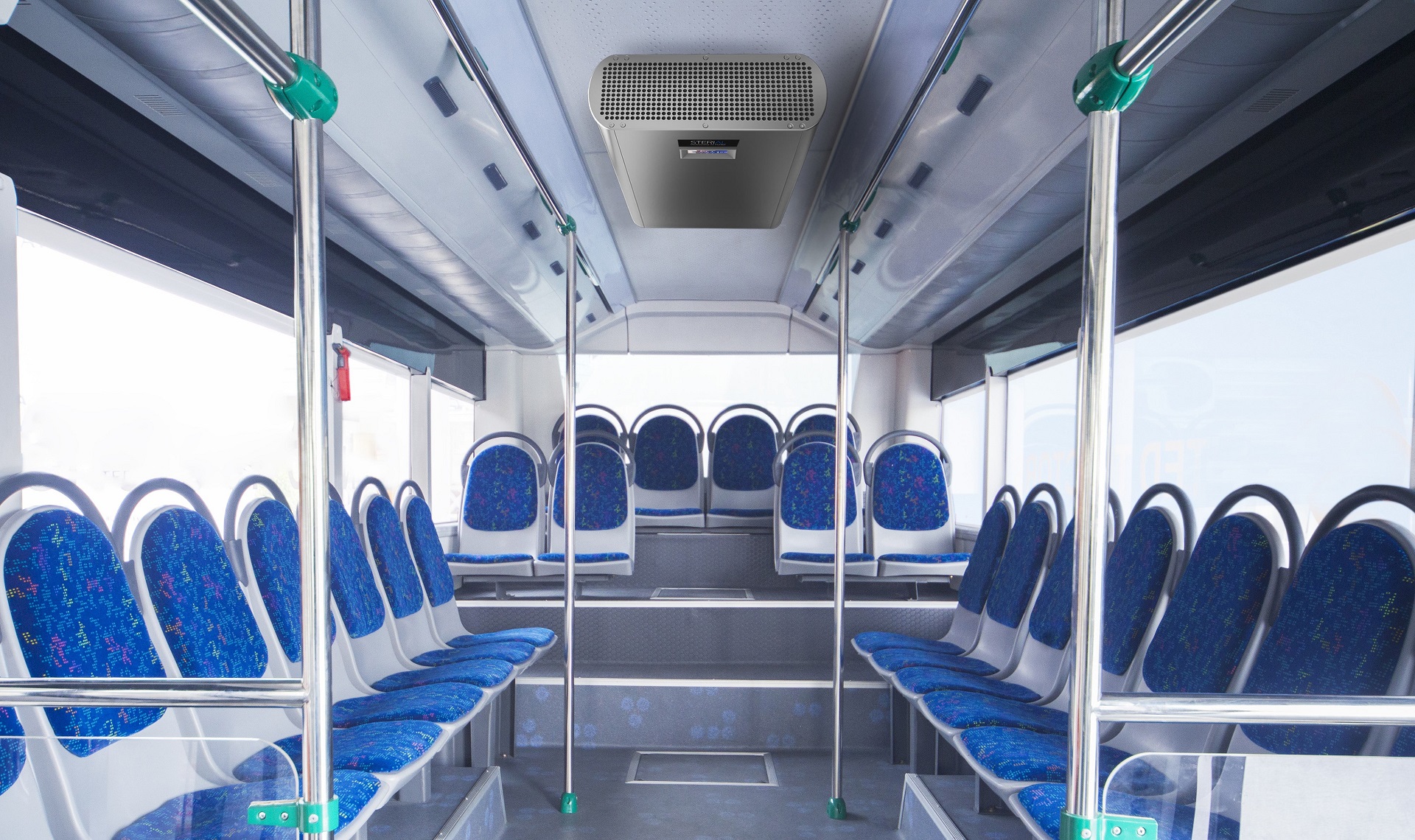

Installation on
Public Transportation

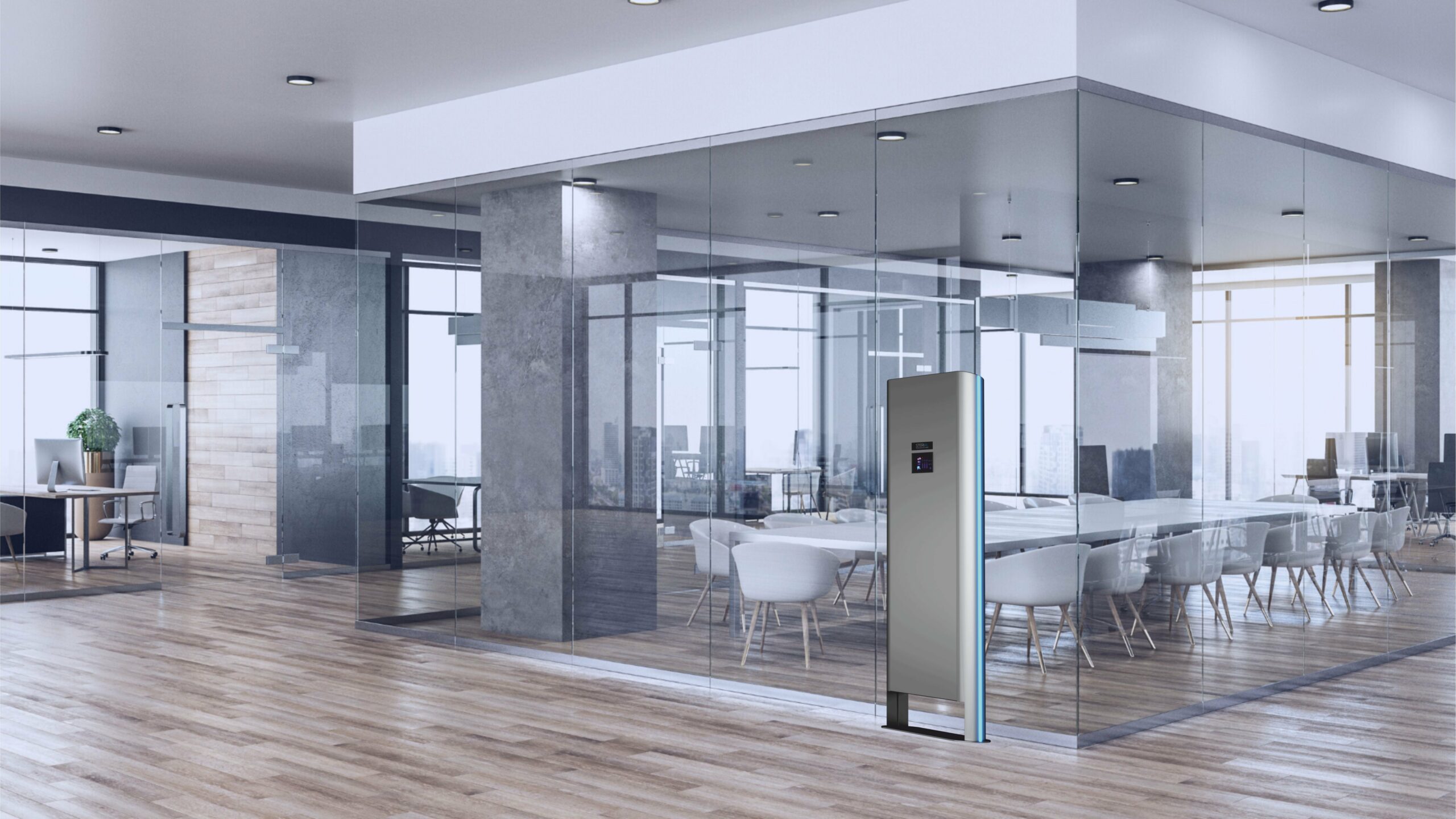

Installation in places
with great number of gathered people

Technical Features

Dimensions (Length x Width x Height)

110cm x 42cm x 15cm

Weight (kg)

30 kg

Power

300 W

UV Lamp Power

3 x 40 W

Fan Flow

450 m³/h

Noise

35 db – 65 db

Filter Life

max 2.000 hours

Screen

Color 3.5’’ TFT

Mounting Base

Fixed on the ceiling or with brackets

Operating Time of UVC Lamps

max 10.000 hours

Dimensions (Length x Width x Height)

143cm x 42cm x 15cm 

Weight (kg)

37 kg

Power

300 W

UV Lamp Power

3 x 40 W

Fan Flow

450 m³/h

Noise

35 db – 65 db

Filter Life

max 2.000 h ours

Screen

Color 3.5’’ TFT

 Mounting Base

Fixed on the floor or trolley 

Operating Time of UVC Lamps

max 10.000 hours

Dimensions (HxWxW)

110cm x 42cm x 15cm

Weight (kg)

23kg

Power

300W (13A)

UV Lamp Power

3 x 40W

Fan Flow

450 m³/h

Noise

35 db – 65 db

Filter Life

max 2.000 hours

Screen

Color 3.5’’ TFT

Mounting Base

Fixed on the ceiling or with arms

Operating Time of UVC Lamps

max 10.000 hours

UV Lamp Power

3 x 40W

Fan Flow

450 m³/h

Noise

35 db – 65 db

Dimensions (Height x Length x Width)

143cm x 42cm x 15cm 

Weight (kg)

30kg

Power

300W

Filter Life

max 2.000 hours

Screen

Color 3.5’’ TFT

 Mounting Base

Fixed on the floor or trolley 

The air purification device is accompanied by the required technical and laboratory certifications.

STERIAL Air Purifier is Invented &
Manufactured in Greece

This device is a result of Greek invention and manufacturing and it was developed under the collaboration of the following Greek laboratories and companies:
